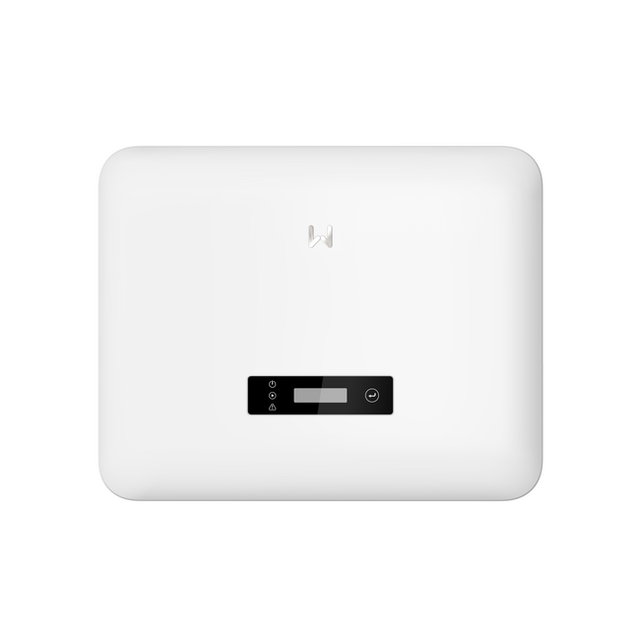

GoodWe GW10K-SDT-EU30 10kW Three-Phase String Inverter

The GoodWe GW10K-SDT-EU30 is a 10kW three-phase string inverter designed for residential and small commercial PV systems with high-power modules. Part of the SDT G3 Series, it features 2 MPPT trackers with 2 inputs per MPPT, delivering a maximum efficiency of 98.0% (European) and supporting increased AC yield of up to 110% nominal power.

Built for silent, reliable operation with natural convection cooling, the inverter integrates comprehensive safety features including PV string monitoring, insulation resistance detection, anti-islanding protection, and optional Type II surge protection on both AC and DC sides. Communications options include WiFi, LAN, 4G, and optional Bluetooth for remote monitoring and control.

The compact design weighs 14.7 kg and measures 491 × 392 × 210 mm, with IP66 ingress protection. Smart energy management capabilities include load control and 24-hour consumption monitoring via optional accessories, and optional AFCI 3.0 arc-fault detection functionality.
