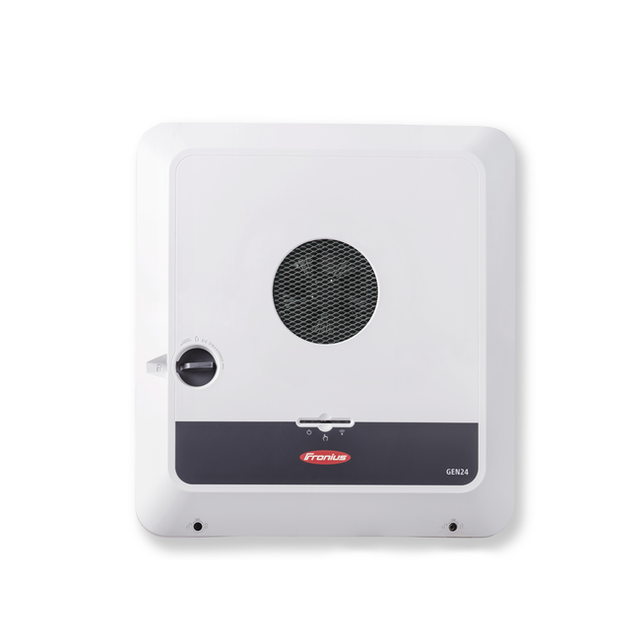

Fronius Symo GEN24 Plus SC 10.0 3-Phase Inverter

The Fronius Symo GEN24 Plus SC 10.0 is a three-phase hybrid inverter rated at 10 kW AC output, designed for residential and small commercial PV systems with energy storage capability. It features two independent MPPT trackers supporting up to 1,000 V DC input, integrated backup power functions (PV Point and Full Backup), and active cooling for extended service life.

The inverter includes open interfaces (WLAN, Ethernet, Modbus RTU) for integration with Fronius and third-party battery systems (Fronius Reserva, BYD Battery-Box HVS/HVM, LG FLEX), enabling advanced energy management and peak load optimization. Built-in safety features include DC isolation measurement, integrated disconnector, reverse polarity protection, and Arc Guard technology.

Rated for both indoor and outdoor installation (-25 to +60 °C), it achieves 98.3% maximum efficiency with low night consumption (<10 W). The compact design (595 × 529 × 180 mm, 22.8 kg) and IP 66 protection class ensure robust performance in various climates.
