Aiko NEOSTAR Pro 3S+54 485W N-Type Dual-Glass Solar Module

Download datasheet

Specifications
Annual degradation year 2 30 max percent 0.35
Cable gauge 4mm² IEC / 12AWG UL
Cable length m 1.2
Cell configuration 6x18 half-cut
Cell count 108
Cell type N-Type ABC
Certifications IEC 61215, IEC 61730, TÜV, CE, PID resistant, ammonia resistant, salt mist resistant, sand/dust resistant
Connector type MC4
Dimensions mm 1762 x 1134 x 30
Efficiency percent 24.3
Fire rating IEC Class A
First year degradation max percent 1
Frame Black anodized aluminum
Glass Dual-glass, 2.0mm + 2.0mm coated semi-tempered
Hail test 35mm diameter at 23 m/s
Imp a 14.02
Isc a 14.84
Junction box IP68, 3 bypass diodes
Max series fuse rating a 30
Max static loading back pa 2400
Max static loading front pa 5400
Max system voltage v 1500
Modules per container 222
Modules per pallet 37
Operating temperature range c -40 to +85
Performance warranty years 30
Power tolerance percent 0 to +3
Product warranty years 30
Protection class Class II
Temperature coefficient isc percent c 0.05
Temperature coefficient pmax percent c -0.26
Temperature coefficient voc percent c -0.22
Tolerance length mm ±2
Tolerance width mm ±2
Vmp v 34.6
Voc v 41
Wattage w 485
Weight kg 24.2

Description

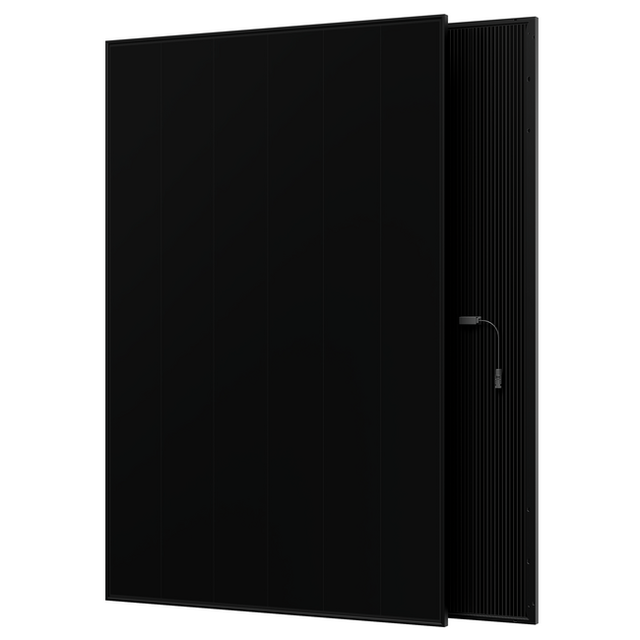

The Aiko NEOSTAR Pro 3S+54 is a 485W N-Type ABC dual-glass solar module featuring 108 half-cut cells arranged in a 6×18 configuration. The module uses advanced N-Type ABC cell technology with 2.0mm coated semi-tempered glass on both sides and a black anodized aluminum frame, delivering 24.3% efficiency and excellent performance in partial shading conditions.

This module is designed for residential and commercial installations with a maximum system voltage of DC1500V and includes original MC4 connectors with a 1.2m cable. It features a temperature coefficient of -0.26%/°C for maximum power and demonstrates superior thermal performance with high-temperature restriction capabilities.

The module comes with a comprehensive 30-year product warranty and 30-year linear performance warranty, with guaranteed performance of 90.6% at year 10 and 88.85% at year 30. It meets IEC Class A fire rating and is certified for salt mist, sand/dust, and ammonia resistance.
