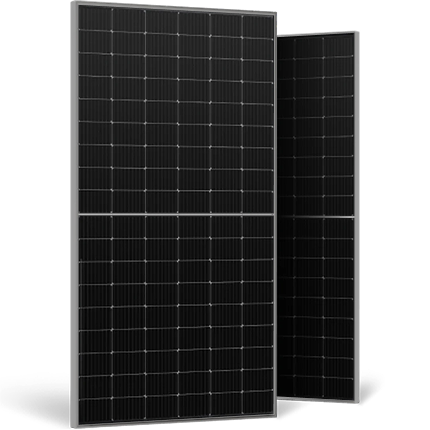

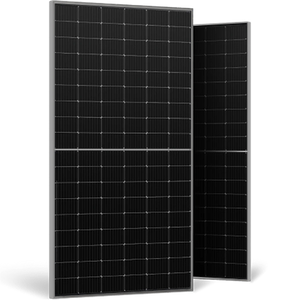

Aiko Neostar 540W N-Type ABC Glass-Glass Bifacial Solar Module

Specifications

Cable length mm	1200
Cable size mm2	4
Cell configuration	6x20
Cell count	120
Cell technology	N-type ABC
Certification standards	IEC 61215, IEC 61730, 2014/35/EU, ISO 9001:2015, ISO 14001:2015, ISO 45001:2018
Connector type	MC4-EVO2A
Degradation annual yr2 30	≤0.35%
Degradation year 1	≤1%
Dimensions	1954 × 1134 × 30 mm
Dimensions mm	1954×1134×30
Efficiency	24.8%
Efficiency percent	24.4
Fire class	IEC Class A
Frame	silverframe
Frame color	Black anodized aluminum
Frame material	Aluminum
Glass type	Glass/glass bifacial, 2.0+2.0 mm coated, half-tempered
Hail test size mm	35
Hail test speed ms	23
Imp a	14.07
Isc a	14.84
Max series fuse	30A
Max static load front pa	5400
Max static load rear pa	2400
Max system voltage dc	1500V
Modules per container	888
Modules per pallet	37
Operating temperature range	-40°C to +70°C
Power tolerance	0~+3%
Protection class	Class II
Temperature coefficient isc	+0.05%/°C
Temperature coefficient pmax	-0.26%/°C
Temperature coefficient voc	-0.22%/°C
Vmp v	38.4
Voc v	45.6
Warranty performance years	30
Warranty power years	30
Warranty product years	15
Wattage w	540
Weight kg	27.1

Description

The Aiko Neostar 540W is a N-type ABC bifacial solar module featuring glass-glass construction with black anodized aluminum frame. The module delivers 24.4% efficiency with 120 half-cut cells (6×20 configuration) and is rated for 540W peak power output at standard test conditions.

Key technical features include a bifacial design for partial shadow optimization, better temperature coefficient performance, overheat protection, and anti-microfracture design. The module measures 1954×1134×30 mm and weighs 27.1 kg, with 4 mm² cable (±1200 mm) and MC4-EVO2A connectors. Junction box is IP68 rated with 3 bypass diodes.

The module carries a 15-year product warranty (extendable to 25 years) and 30-year linear performance guarantee. It meets IEC 61215 and IEC 61730 safety standards with comprehensive certification including ISO 9001:2015, ISO 14001:2015, and ISO 45001:2018.
