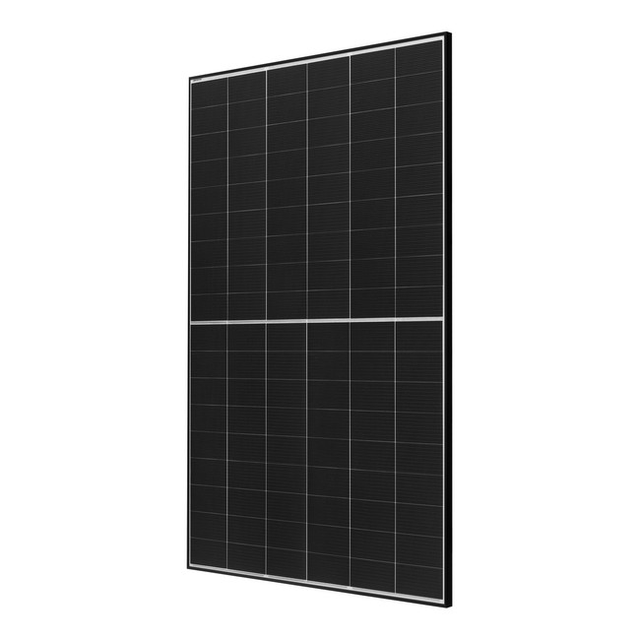

Aiko Neostar 2P+ 470W Dual-Glass Solar Module

Download datasheet

Specifications
Annual degradation year 2 30 ≤0.35%
Cable cross section 4mm² IEC / 12AWG UL
Cable length mm 1200
Cell configuration 6x18 half-cut
Cell count 108
Cell type N-Type ABC
Connector type MC4-Evo2
Dimensions mm 1757 x 1134 x 30
Efficiency percent 23.6
Fire rating IEC Class A
First year degradation ≤1%
Frame material Black anodized aluminum
Glass type Dual-glass, 2.0 + 2.0mm coated semi-tempered
Hail test 35mm diameter at 23 m/s
Imp a 13.54
Isc a 14.32
Junction box IP68, 3 bypass diodes
Maximum series fuse rating a 25
Maximum static loading back pa 2400
Maximum static loading front pa 5400
Maximum system voltage dc v 1500
Modules per container 962
Modules per pallet 37
Operating temperature range -40°C to +85°C
Performance warranty years 30
Power tolerance 0 to +3%
Product warranty extendable to years 25
Product warranty years 15
Protection class ClassII
Temperature coefficient isc +0.05%/°C
Temperature coefficient pmax -0.26%/°C
Temperature coefficient voc -0.22%/°C
Vmp v 34.74
Voc isc tolerance ±3%
Voc v 41.18
Wattage w 470
Weight kg 24.2

Description

The Aiko Neostar 2P+ is a 470W dual-glass solar module featuring N-Type ABC cell technology with 108 half-cut cells. It delivers 23.6% module efficiency and is designed for high-performance energy yield in residential and commercial installations, with consistent performance under partial shading and high temperature conditions.

The module features a robust dual-glass construction (2.0mm + 2.0mm coated semi-tempered glass) with black anodized aluminum frame, providing excellent protection against moisture, microcracks, and UV exposure. It measures 1757 × 1134 × 30mm and weighs 24.2kg, equipped with MC4-Evo2 connectors for standard mounting compatibility.

The module is backed by a 30-year linear performance warranty with first-year degradation of ≤1% and annual degradation from year 2–30 of ≤0.35%. It carries IEC Class A fire rating and is rated for maximum system voltage DC1500V with front static loading of 5400Pa and hail resistance to 35mm diameter at 23 m/s.
