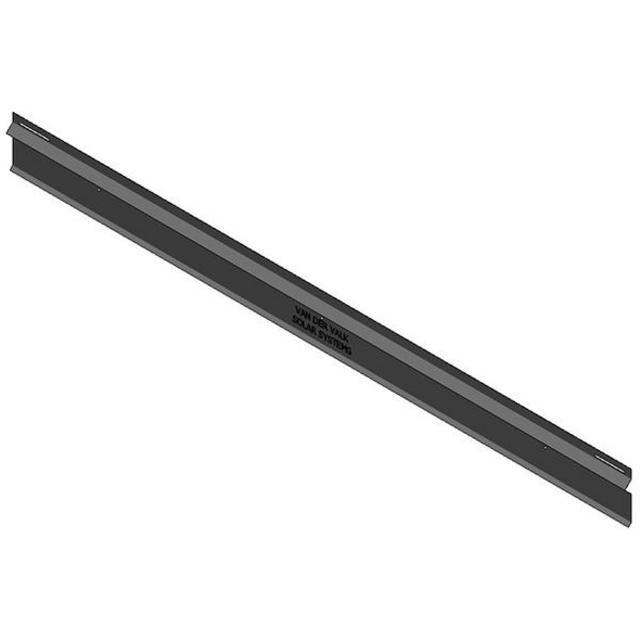

Van der Valk ValkPro+ L10° Galvanised Backplate 2180 mm

Galvanised steel backplate for the Van der Valk ValkPro+ flat-roof PV mounting system. Designed for landscape array configurations with a fixed 10° tilt angle. Dimensions: 2180 mm length × 171 mm height, suitable for solar panel lengths between 1920–2120 mm.

The backplate is installed on the rear of the mounting structure to provide weather protection. It is secured using self-tapping bolts into the aluminium rear mounting rails, with overlapping sections fastened together using self-tapping screws. The galvanised finish offers corrosion resistance.

Part of the ValkPro+ system, which features metal couplings for reliable earthing and lightning protection integration, low ballast requirements, and fast assembly. Compatible with flat roofs, gravel roofs, sedum roofs, and can be adapted for roof slopes up to 5°.
