Van der Valk ValkPro+ L10° Galvanised Backplate 1980mm
Opis

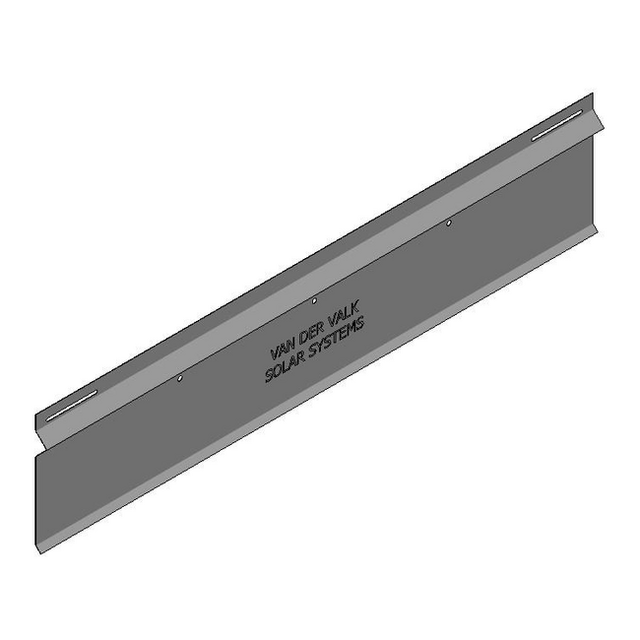

Galvanised steel backplate for the ValkPro+ PV mounting system, sized for landscape arrays with a 10° tilt angle and solar panel lengths between 1720–1920 mm. The backplate protects the rear of the PV system from the elements and is inserted into recesses in the aluminium rear mounting frame, then fastened with self-tapping bolts. Where backplates overlap, they are joined together using self-tapping screws.
The ValkPro+ is a low-ballast mounting system designed for flat roofs, available in south-facing and east-west configurations. It features metal couplings for grounding and lightning protection, requires minimal roof load, and can accommodate panel lengths up to 2.5 m. Installation is rapid, with approximately three minutes per panel.
Specyfikacje
- Dimensions
- 1980 mm length × 171 mm height
