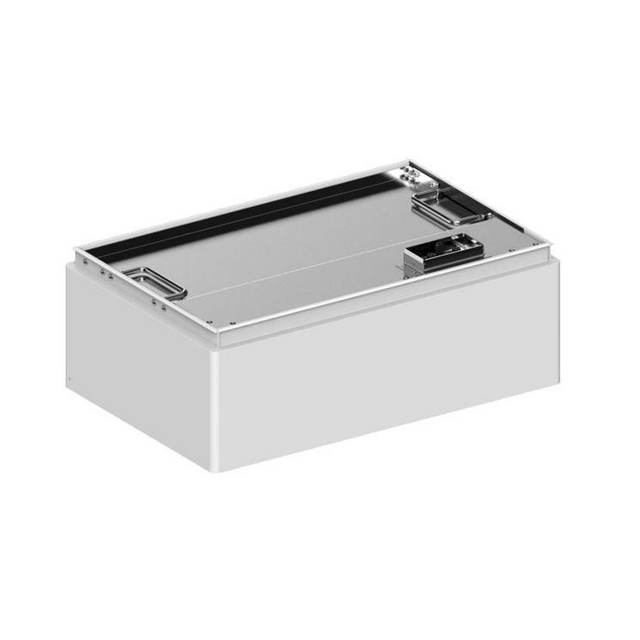

Pylontech Force H3 5.12 kWh High-Voltage Stackable Battery Module

The Pylontech Force H3 is a high-voltage residential battery module designed for scalable energy storage systems. Each module delivers 5.12 kWh of capacity at a nominal voltage of 102.4 V DC, with up to 95% usable capacity. The stackable design allows systems to be configured with 2 to 7 modules, scaling total capacity from 10.24 kWh to 35.84 kWh to meet various installation requirements.

The Force H3 features intelligent control via RS485/CAN communication, an IP55 protection rating, and compatibility with multiple inverter brands. It supports parallel multi-group configurations and offers flexible mounting options with remote maintenance capabilities. The module is compact, measuring 540×350×170 mm, and weighs 39 kg per unit.

Featuring multiple layers of protection through Pylontech's self-developed BMS (Battery Management System), the Force H3 has a design life of 15+ years and a cycle life exceeding 8,000 cycles at 25°C. Its operating temperature range is –20 to +60°C. This unit is supplied without an integrated BMS and includes a 10-year manufacturer's warranty.
