Specyfikacja
Specyfikacja
| Ac power kw | 100 |
| Capacity | 211 kWh |
| Cooling | Liquid-cooled |
| Cycle life | >8000 cycles at 0.5C, 25°C, 90% DOD |
| Dimensions | 1340 × 1300 × 2300 mm |
| Efficiency percent | 90 |
| Ingress protection | IP55 |
| Voltage nominal | 600–803 V |
| Weight kg | 2600 |
| Work temp range | −30 to +50°C |
Opis
Opis

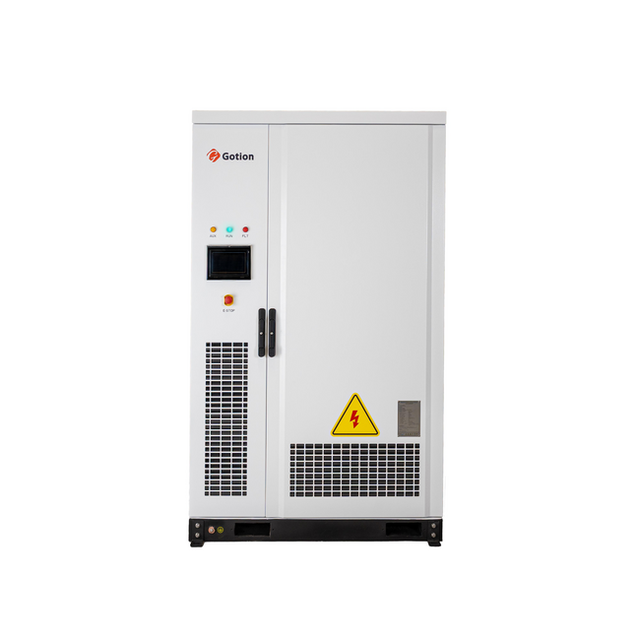

The Gotion ESC-R100-211-CE is an industrial and commercial all-in-one energy storage system with a capacity of 211 kWh and rated power output of 100 kW. It features an integrated cabinet design with IP55 protection rating, making it suitable for outdoor installation in diverse weather conditions. The system employs LFP (lithium iron phosphate) battery cells with liquid cooling technology for stable performance under high loads and extreme temperatures.
Key operational features include a maximum system efficiency of 90%, depth of discharge of 90%, voltage range of 600–803 V, and a wide working temperature range from −30 °C to +50 °C. The modular, highly integrated design supports plug-and-play deployment and multi-unit parallel configuration for flexible expansion. It includes an integrated EMS (Energy Management System) with real-time monitoring, remote operation and maintenance capabilities, and intelligent temperature control.
The system is certified to multiple international standards including GB/T36276, IEC62619, IEC62477, IEC61000, and UN38.3, and features aerosol-based fire suppression with multi-level electrical control for safety and reliability in capacity expansion, data centers, commercial buildings, charging stations, and industrial applications.
Karta katalogowa produktu
Karta katalogowa produktu
Gotion ESC-R100-211-CE 211kWh 100kW All-in-One Energy Storage System
