Dyness DY-TOWER-PRO 11.52 kWh Storage Stack

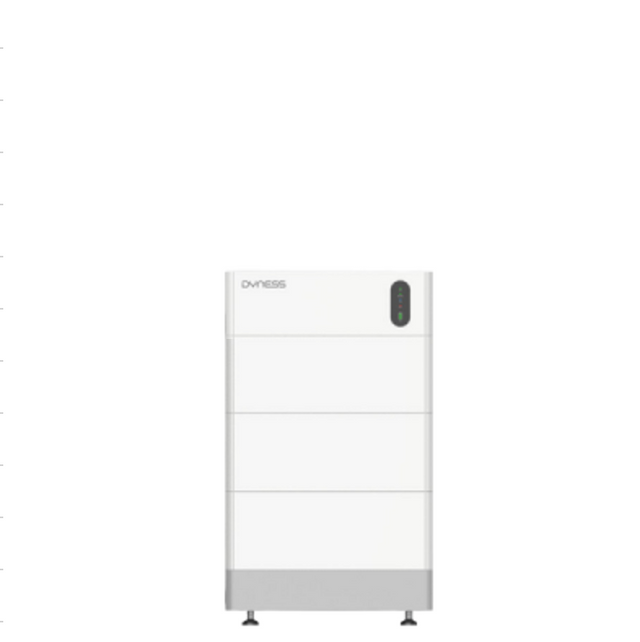

The Dyness Tower Pro TP11 is a mid-range high-voltage energy storage solution with 11.52 kWh total capacity and 288V DC nominal system voltage. It consists of 3 HV9640 battery modules (3.84 kWh each) combined with an intelligent Battery Distribution Unit (BDU), operating on the Dyness Ultra Safe Tower Pro architecture with integrated aerosol fire suppression that activates within 5 seconds.

The system features advanced LiFePO4 chemistry with integrated self-heating modules for safe operation at low temperatures, active BMS for continuous monitoring of voltage, temperature and cell balancing, and system-level fire safety protection. The battery can be expanded to 23.04 kWh per tower (maximum 6 modules) and rated for over 6000 charge cycles.

Installation must be performed by certified installers in accordance with NEN and EU standards. The unit includes the BDU with communication and DC cables, connectors, grounding cable, mounting hardware, and 3 HV9640 battery modules with mounting screws.
