Specyfikacja
Specyfikacja
| Annual degradation percent | ≤0.35% |
| Cable gauge | 4mm² (IEC) / 12AWG (UL) |
| Cable length mm | 1200 |
| Cell count | 108 |
| Cell type | N-Type ABC |
| Configuration | 6x18 |
| Connector type | MC4-Evo2 |
| Dimensions mm | 1757 x 1134 x 30 |
| Efficiency percent | 23.3 |
| Fire rating | IEC Class A |
| First year degradation percent | ≤1% |
| Frame material | Black anodized aluminum |
| Glass type | Dual glass 2.0mm + 2.0mm coated semi-tempered |
| Hail test | 25mm diameter at 23 m/s |
| Imp a | 13.41 |
| Isc a | 14.29 |
| Junction box | IP68, 3 bypass diodes |
| Maximum series fuse rating a | 25 |
| Maximum static loading pa | Front 5400 / Back 2400 |
| Maximum system voltage v | 1500 |
| Modules per container | 216 |
| Modules per pallet | 36 |
| Noct efficiency percent | 23.3 |
| Noct power w | 350 |
| Operation temperature c | -40 to +85 |
| Pallets per container | 6 |
| Power tolerance percent | 0 to +3% |
| Power warranty retention percent | 90.6 |
| Power warranty years | 30 |
| Product warranty years | 25 |
| Protection class | Class II |
| Temperature coefficient isc | +0.05%/°C |
| Temperature coefficient pmax | -0.26%/°C |
| Temperature coefficient voc | -0.22%/°C |
| Vmp v | 34.68 |
| Voc isc tolerance percent | ±3% |
| Voc v | 41.12 |
| Wattage w | 465 |
| Weight kg | 24.5 |
Opis
Opis

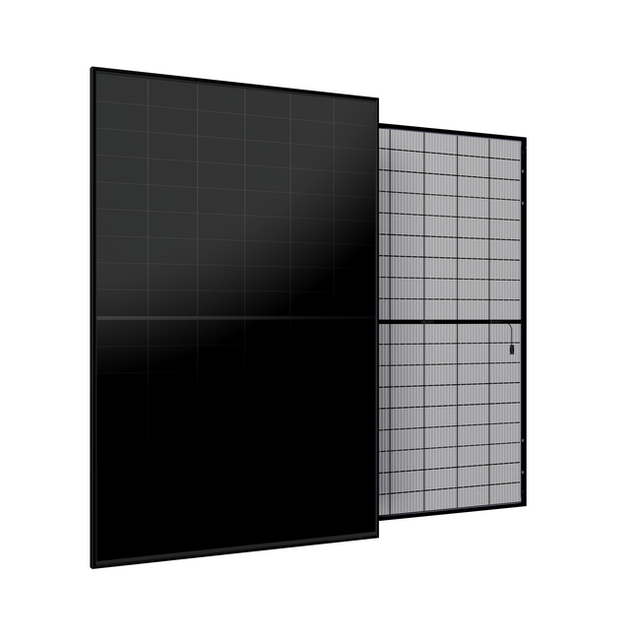

The Aiko NEOSTAR 2S+ 465W is a premium dual-glass N-Type ABC solar module featuring 108 half-cut cells with 23.3% efficiency. The module uses dual 2.0mm coated semi-tempered glass, black anodized aluminum frame, and MC4-Evo2 connectors, delivering reliable long-term performance with first-year degradation of ≤1% and annual degradation from year 2-30 of ≤0.35%.
Built with partial shading optimization and high temperature restriction capabilities, this Gen2 NEOSTAR module is designed for diverse installation environments. The panel achieves 233 Wp/m² power density and operates across -40°C to +85°C temperature range with DC1500V maximum system voltage.
The module includes a 25-year product warranty and 30-year linear performance warranty, guaranteeing 90.6% output at year 30. It is rated for IEC Class A fire safety and offers enhanced micro-crack resistance with aesthetic black-on-black design.
Karta katalogowa produktu
Karta katalogowa produktu
Aiko NEOSTAR 2S+ 465W Dual-Glass Solar Module
