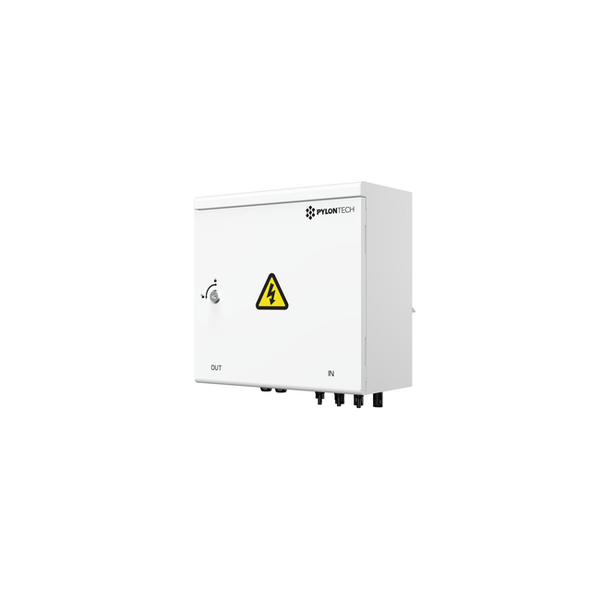

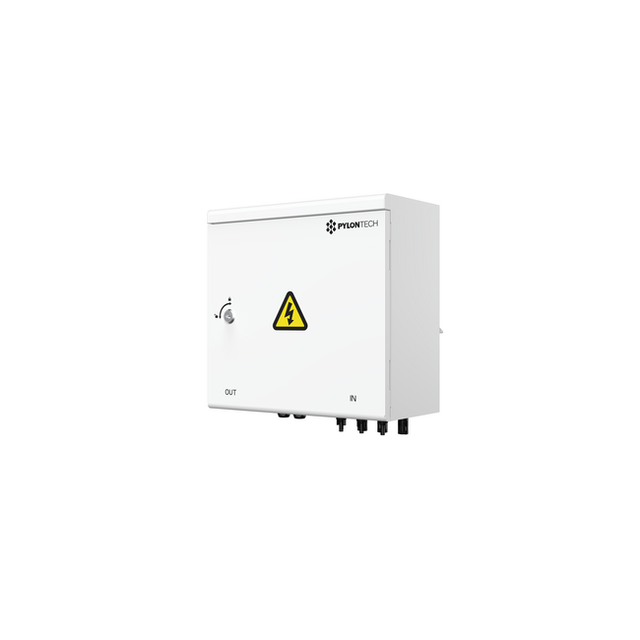

Pylontech P-Combiner-HV-3-V2 High-Voltage Battery Combiner Box

High-voltage combiner box designed for Pylontech ForceH series battery systems. The P-Combiner-HV-3-V2 combines multiple battery towers into a single output for connection to an inverter or power conversion system. Features 3 input terminals and 1 output terminal with a nominal 50A output current, rated for 1000 V DC operation.

Built with Amphenol connectors (H4SMM8DM positive, H4SFM8DM negative) on inputs and M24 x 1.5 cable connection on output. Includes integrated 80A fuse protection with 50 kA breaking capacity at 1000 VDC and a disconnect switch rated for 12 kA at 1500 VDC. Wall-mountable enclosure with IP55 rating, suitable for indoor or sheltered outdoor installation.

Complies with IEC61439-1 and IEC61439-2 standards. Operating temperature range −20 to +55 °C, design life 15+ years at 25 °C. CE marked and TÜV SÜD certified.
