Spezifikation
Spezifikation
| Ac power kw | 125 |
| Battery type | Li-ion (LFP) |
| Capacity | 260 kWh |
| Cycle life | >8500 cycles |
| Depth of discharge | 98% |
| Dimensions mm | 950×1300×2480 |
| Operating temperature range | -25 to +50 °C |
| Phase | Single or three-phase configurable |
| Protection class | IP55 |
| Round trip efficiency | >95% @ 0.5C-rate |
| Voltage nominal | 702–936 Vdc |
| Weight kg | 2900 |
Beschreibung
Beschreibung

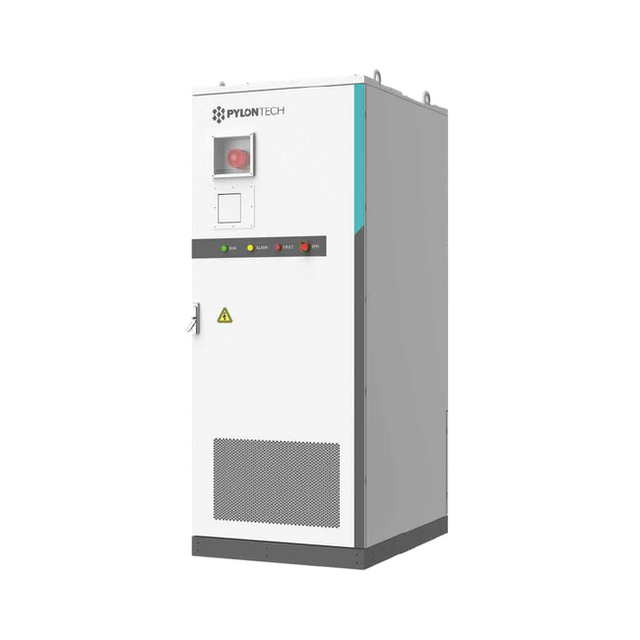

The Pylontech L260-OMNI is a large-scale lithium iron phosphate (LFP) battery storage system with a usable capacity of 260 kWh and continuous power output of 125 kW. It is designed for commercial and industrial applications including on-grid support, electricity arbitrage, demand response, ancillary services, and backup power.
The system features active liquid cooling, non-isolated PCS (Power Control System), and operates across a wide temperature range from -25 to +50 °C. It achieves round-trip efficiency exceeding 95% at 0.5C discharge rate and supports up to 6 units in parallel configuration, allowing scalability up to 1560 kWh and 750 kW. The cabinet comes with IP55 protection rating, suitable for both indoor and outdoor installation.
Standard specifications include 702–936 Vdc nominal range, 98% depth of discharge, cycle life exceeding 8500 cycles, and communication via Ethernet (Modbus TCP). The system is certified to IEC62619, IEC62040-1, CE, VDE2510-50, UL1973, and UL9540A standards.
Produktdatenblatt
Produktdatenblatt
Pylontech L260-OMNI 260kWh 125kW Battery System with Integrated Cab...
