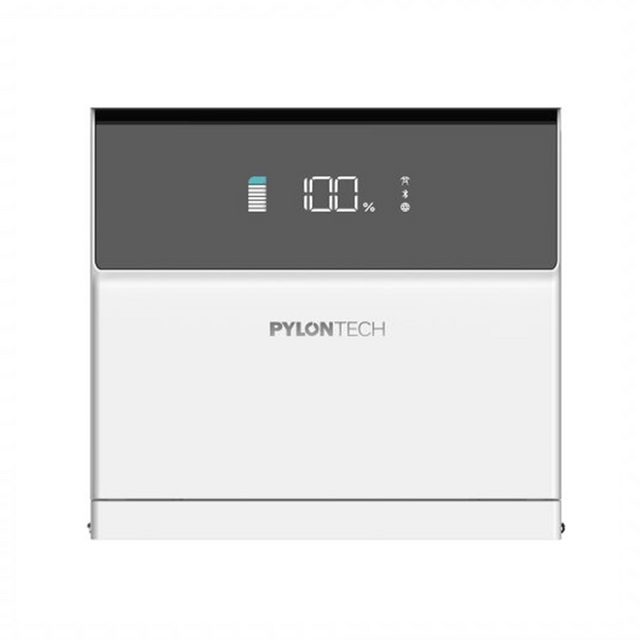

Pylontech Force H3X 3.6K Hybrid Inverter 1-Phase

The Pylontech Force H3X 3.6K is a compact single-phase hybrid inverter designed for residential solar and battery storage installations. It supports both grid-connected and off-grid (backup) operation with a switchover time of ≤10 ms, nominal backup power of 3.6 kVA, and 97% maximum efficiency.

The inverter features dual MPPT inputs with 2 strings per MPPT, a maximum DC input voltage of 600V, and MPPT voltage range of 80–550V. It includes integrated energy metering and built-in communications via WiFi, LAN, and Bluetooth for monitoring and configuration.

Rated at 15.7A continuous output, the unit is certified for EN 50549-1/10 compliance and includes an integrated CT (current transformer) and IP65 ingress protection. It operates across –10 to +55 °C and features natural cooling with no moving parts.
