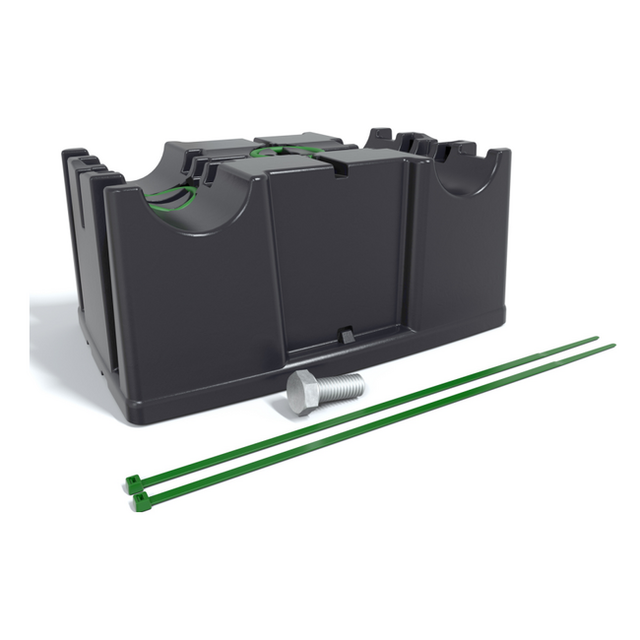

PVX Multistrap+ Tiewrap/M8 Roof Mounting System

Wind-certified mounting system for securing tubes or M8 applications on flat roofs. The Multistrap+ accommodates either two tubes (ø 16–32 mm), one larger tube (ø 16–100 mm), one M8 application (max 300 mm width), or a ballast block.

Constructed from HDPE with a thermally galvanized M8 bolt and pre-assembled tie wraps (2 × 200 mm, 24-year UV-stable plastic). Maximum load capacity is 200 kg. Fully UV-resistant and rated for temperatures from −40 °C to +60 °C.

Certified for wind force 10 (24.5–28.4 m/s) per NEN-EN 1881-1-4, NEN 7250, and CUR Recommendation 103. The integrated concrete ballast block is frost-proof with a 100-year warranty. Product warranty: 15 years.
