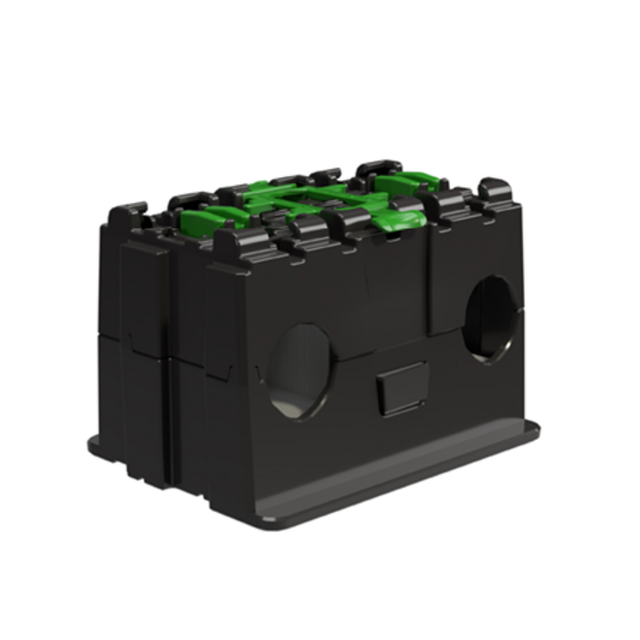

PVX Multimount PVX23011945 Roof Support with Cable Tray Clip and Tube Lockers

The PVX Multimount is a multifunctional, wind-certified roof support system designed for installing cable trays and/or conduits on flat roofs. It features a cable tray insertion field with capacity for 3 cable tray clips, two tube inlets (Ø 16–32 mm), two tube lockers on the top side, and a cover function for tube insertion. The system includes one ballast block and can be connected end-to-end for unlimited cable tray width installation.

Manufactured from UV-resistant ASA and HDPE materials (halogen-free), the system operates reliably from −40 °C to +60 °C and supports a maximum load of 50 kg. It is assembled vertically via two M6 fastening holes in the base with rosette washers and comes with a 15-year product warranty. The ballast block is frost-resistant and KOMO-certified with a 100-year guarantee.

Certified to NEN-EN 1881-1-4: 2011, NEN 7250: 2014, and CUR Recommendation 103: 2005 for wind compliance. Made from 80% recycled plastic and fully manufactured and assembled in the Netherlands.
