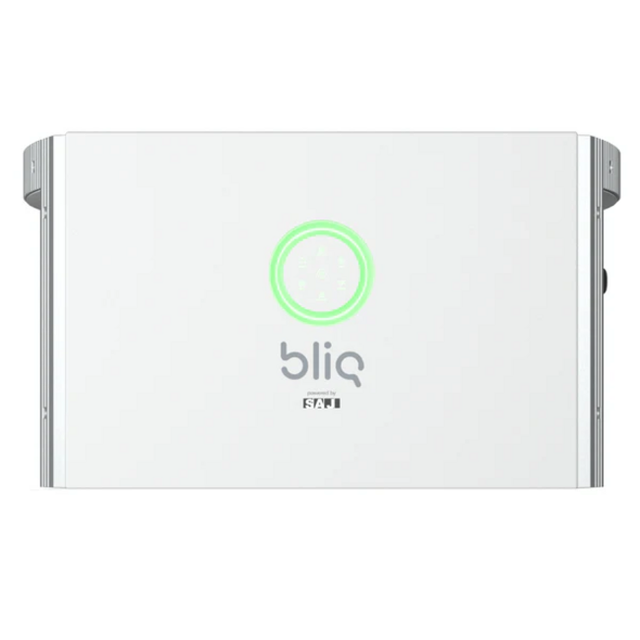

Bliq HS2 5 kW 3-Phase Hybrid Inverter with 2 MPPTs

The Bliq HS2 is a 5 kW three-phase hybrid inverter designed for integration with Bliq home battery systems and the Bliq energy manager. It features two independent MPPT inputs for efficient control of two separate PV strings, enabling optimal energy distribution between generation, purchase, sale, and consumption.

The inverter delivers 5000 W rated AC power with a maximum output current of 8.3 A at 230 V AC. It supports flexible battery configurations (10, 15, or 20 kWh) by connecting up to four battery modules, with no separate BMS required thanks to integrated battery management. The unit includes UPS functionality for backup power during outages and built-in AFCI protection for enhanced safety.

Rated AC output is 5000 W with 5500 VA apparent power. Maximum efficiency reaches 98% and Euro efficiency is 97.6%. The inverter is IP65-rated for indoor and outdoor installation, operates via Wi-Fi/Ethernet communication, includes a built-in SIM card with data plan, and comes with a 10-year warranty.
