Spezifikation
Spezifikation
| Annual degradation year 2 30 | ≤0.35% |
| Cable cross section | 4mm² IEC / 12AWG UL |
| Cable length mm | 1200 |
| Cell configuration | 6x18 half-cut |
| Cell count | 108 |
| Cell type | N-Type ABC |
| Connector type | MC4-Evo2 |
| Dimensions mm | 1757 x 1134 x 30 |
| Efficiency percent | 23.6 |
| Fire rating | IEC Class A |
| First year degradation | ≤1% |
| Frame material | Black anodized aluminum |
| Glass type | Dual-glass, 2.0 + 2.0mm coated semi-tempered |
| Hail test | 35mm diameter at 23 m/s |
| Imp a | 13.54 |
| Isc a | 14.32 |
| Junction box | IP68, 3 bypass diodes |
| Maximum series fuse rating a | 25 |
| Maximum static loading back pa | 2400 |
| Maximum static loading front pa | 5400 |
| Maximum system voltage dc v | 1500 |
| Modules per container | 962 |
| Modules per pallet | 37 |
| Operating temperature range | -40°C to +85°C |
| Performance warranty years | 30 |
| Power tolerance | 0 to +3% |
| Product warranty extendable to years | 25 |
| Product warranty years | 15 |
| Protection class | ClassII |
| Temperature coefficient isc | +0.05%/°C |
| Temperature coefficient pmax | -0.26%/°C |
| Temperature coefficient voc | -0.22%/°C |
| Vmp v | 34.74 |
| Voc isc tolerance | ±3% |
| Voc v | 41.18 |
| Wattage w | 470 |
| Weight kg | 24.2 |
Beschreibung
Beschreibung

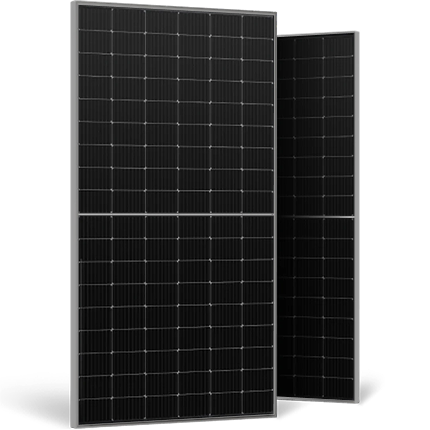

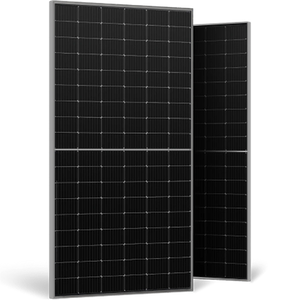

The Aiko Neostar 2P+ is a 470W dual-glass solar module featuring N-Type ABC cell technology with 108 half-cut cells. It delivers 23.6% module efficiency and is designed for high-performance energy yield in residential and commercial installations, with consistent performance under partial shading and high temperature conditions.
The module features a robust dual-glass construction (2.0mm + 2.0mm coated semi-tempered glass) with black anodized aluminum frame, providing excellent protection against moisture, microcracks, and UV exposure. It measures 1757 × 1134 × 30mm and weighs 24.2kg, equipped with MC4-Evo2 connectors for standard mounting compatibility.
The module is backed by a 30-year linear performance warranty with first-year degradation of ≤1% and annual degradation from year 2–30 of ≤0.35%. It carries IEC Class A fire rating and is rated for maximum system voltage DC1500V with front static loading of 5400Pa and hail resistance to 35mm diameter at 23 m/s.
Produktdatenblatt
Produktdatenblatt
Aiko Neostar 2P+ 470W Dual-Glass Solar Module
